Precision Seamless Steel Tube
Zhejiang Dingxin Steel Tube Manufacturing Co., Ltd., founded in 2004, is a leading precision seamless steel tube manufacturer in China.
The steel pipes we manufacture primarily encompass hydraulic cylinder tube, automotive tube, tube for mining and drilling, as well as precision seamless steel tube.
Why Choose us
Our Certifications
Certified under ISO 9001 and IATF 16949.
Production Capacity
With an annual production capacity exceeding 30,000 tons.
Production Experience
Dingxin possesses over 20 years of experience in the production of precision seamless steel tubes, coupled with a fully integrated in-house manufacturing process and comprehensive quality management systems.
Parameter
|

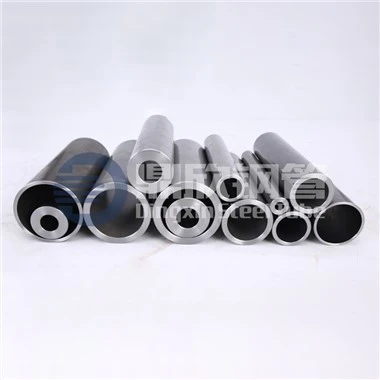

Product name |
Cold drawn seamless steel tube |
|
|
Standard |
ASTM A519, EN 10305-1, DIN2391, JIS G3445, GB/T 3639 |
|
|
Material |
ASTM A519: 1010 1020 1026 1045 4130 4140 1541 DIN2391: ST35 ST37 ST45 ST52 EN 10305-1: E215 E235 E255 E355 JIS G3445: STKM 11A, STKM 12B, STKM 13C, STKM 14B GB/T 3639: 10# 20# 25# 35# 45# 55# Q345B Q355B 25Mn 20Cr 40Cr 40Mn2 30CrMo 42CrMo 30CrMnSiA 45MnMoB 16MnCr5 20MnCr5 |
|
|
Dimension |
OD 12-245mm WT 1-32mm Length: 3-10m or cut length based on client’s requirement |
|
|
Delivery condition |
Cold, Stress relieved and annealed, Annealed, Normalized |
|
|
Certificate |
ISO 9001, IATF 16949 |
|
|
Applications |
Automotive industry, hydraulic cylinder, drilling, etc. |
|
|
Packaging |
Long pipe: Hexagonal bundles with steel-hooped. |
|
|
Delivery condition |
Symbol |
|
|
Cold-finished/hard |
+C |
BK |
|
Cold-finished/soft |
+LC |
BKW |
|
Stress-relieved |
+SR |
BKS |
|
Annealed |
+A |
GBK |
|
Normalized |
+N |
NBK |
Types of Precision Seamless Steel Tube
The precision seamless steel tube produced by our company mainly include the following types:

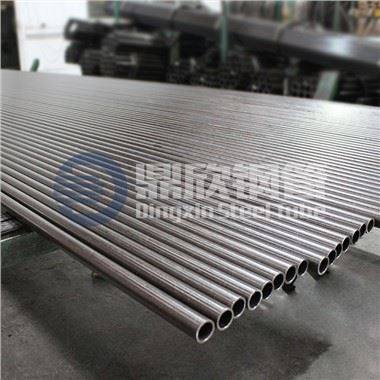

DIN 1629 ST37.0 ST44.0 ST52.0 Seamless Steel Tube
DIN 1629 is for Seamless Circular Unalloyed Steel Tubes subject to special requirements. These tubes are mainly used for the construction of chemical plant, vessels, pipework and general mechanical engineering purposes. The main materials are DIN 1629 ST37.0, DIN 1629 ST44.0 and DIN 1629 ST52.0. DIN 1629 ST52.0 has excellent weldability such as gas fusion welding, arc welding, flash butt welding, electric pressure welding, and gas pressure welding with relative low cost.
EN10297-1 E235 E355 C35 C45 Seamless Steel Tube For Mechanical And General Engineering Purposes
EN10297-1 is a European standard for Seamless Steel Tubes for Mechanical and General Engineering Purposes. It specifies the chemical composition, mechanical properties, dimensions, dimensional tolerance and technical requirements for seamless circular tubes made of both non-alloy and alloy steel tubes.

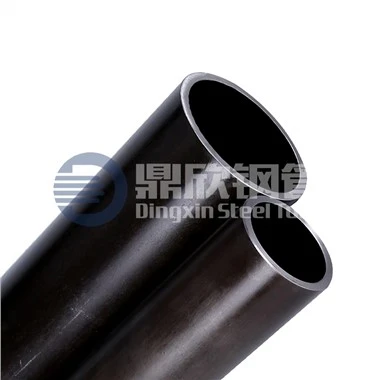

EN10084 16MncCr5 20MnCr5 Seamless Tube
European standard EN10084 provides the technical standards for materials including non alloy special steels (C10E, C10R, C15E, C15R, C16E and etc.) and alloy special steels ( 16MnCr5, 20MnCr5 and etc.). Case hardening steels have good wear resistance. For example, 16MnCr5 has tensile strength ranging from 900-1100 N/mm². 16MnCr5 is used for used to make shafts, axles, gears, gear wheels, bolts, levers and other transport and machine-building components.20MnCr5 is a case hardened grade with good hardenability and good wear resistance. The surface hardness is high after hardening.
Benefits of Precision Seamless Steel Tube
Enhanced Strength and Durability
One of the primary benefits of precision seamless steel tubes is their superior strength and durability. Without any seams or welds, these tubes are less susceptible to weak points, which can be prone to failure under pressure. The seamless manufacturing process ensures a uniform structure throughout the tube, making it highly resistant to fatigue and cracking. This strength is especially important in industries such as automotive and aerospace, where parts must endure high levels of stress and pressure without compromising safety or performance.
High Resistance to Corrosion and Wear
Precision seamless steel tubes are designed to withstand harsh environments. The absence of seams means there are no vulnerable points where corrosion can begin, making them more resistant to rust and chemical degradation. Additionally, these tubes can be made from various grades of steel, such as stainless steel, which further enhances their corrosion resistance. This makes precision seamless steel tubes ideal for use in industries like oil and gas, where exposure to corrosive substances is common.
Precise Dimensions and Tight Tolerances
Another significant advantage of precision seamless steel tubes is their ability to maintain precise dimensions and tight tolerances. These tubes are manufactured with highly accurate machinery that ensures they meet strict size and roundness specifications. This level of precision is crucial in industries that require components to fit together with high accuracy, such as in hydraulic systems or structural components in construction. The consistency in size and shape also allows for better performance in high-precision applications, reducing the need for additional machining or adjustments.
Improved Heat Resistance
Precision seamless steel tubes offer excellent resistance to high temperatures, making them suitable for applications involving extreme heat. The seamless structure of the tubes allows them to expand and contract evenly when exposed to temperature fluctuations, preventing warping or deformation. This heat resistance is essential in industries like power generation and chemical processing, where components are subjected to high temperatures during their operation.
